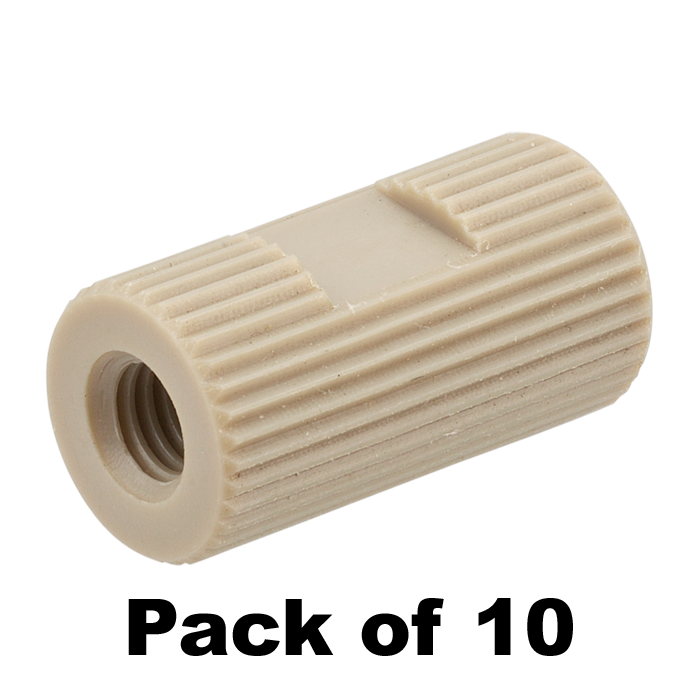

Adapter, for use with low to medium pressure HPLC. 10-32 female to female Luer connection, 1.3 mm / 0.051 bore size. PEEK. ARE-Applied Research brand. 10/PK.
Additional Info:

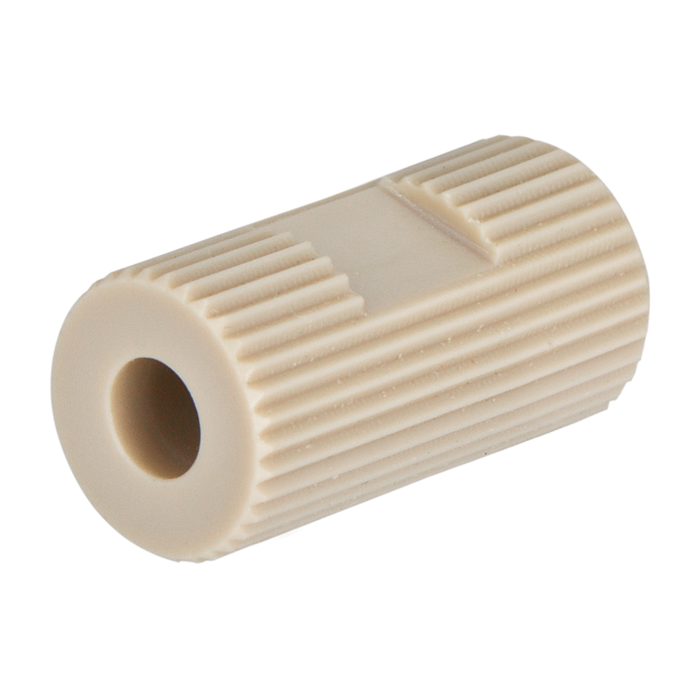

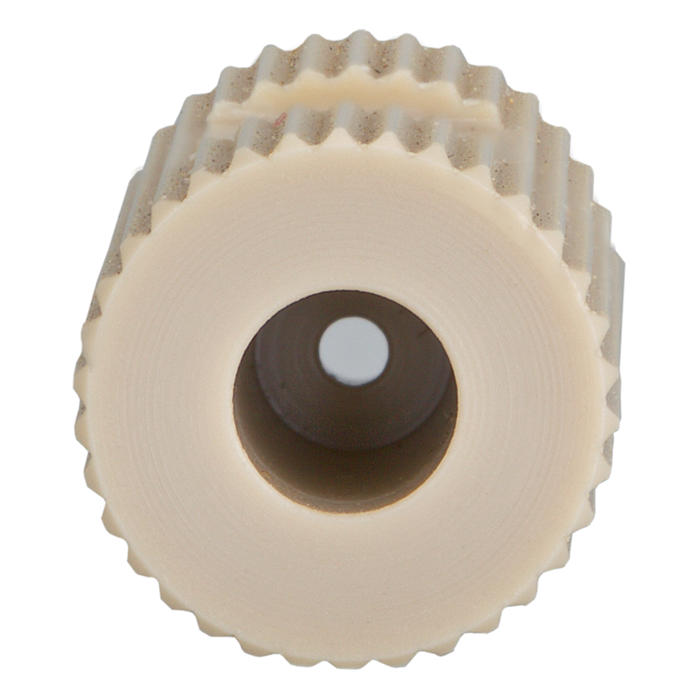

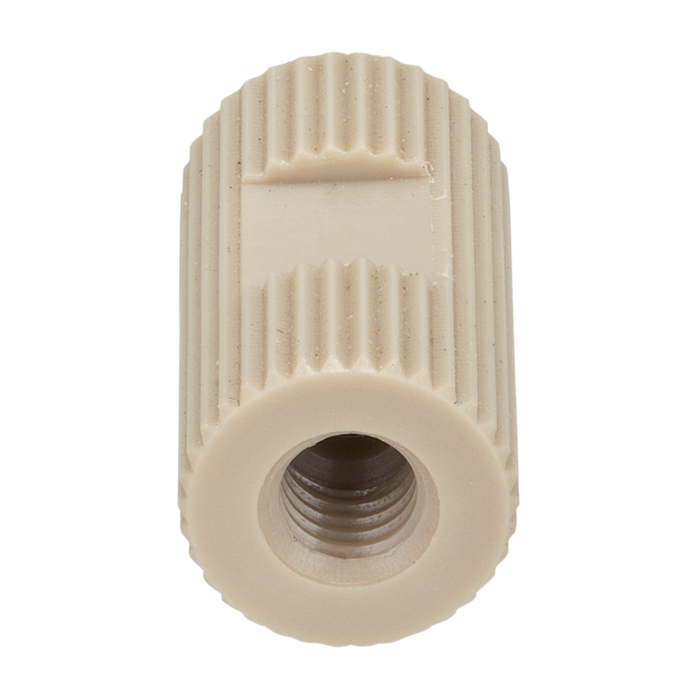

This all-PEEK adapter has one side with a 10-32 threaded female port, and the other side is a female Luer slip connection.
This adapter is great tools for manually priming HPLC instruments through the prime purge valve.
Maximum Temperature: 100°C
Maximum Pressure: 8,000 psig.
Click HERE for a pack of 5.
Click HERE female for 1/4-28 threaded adapter.

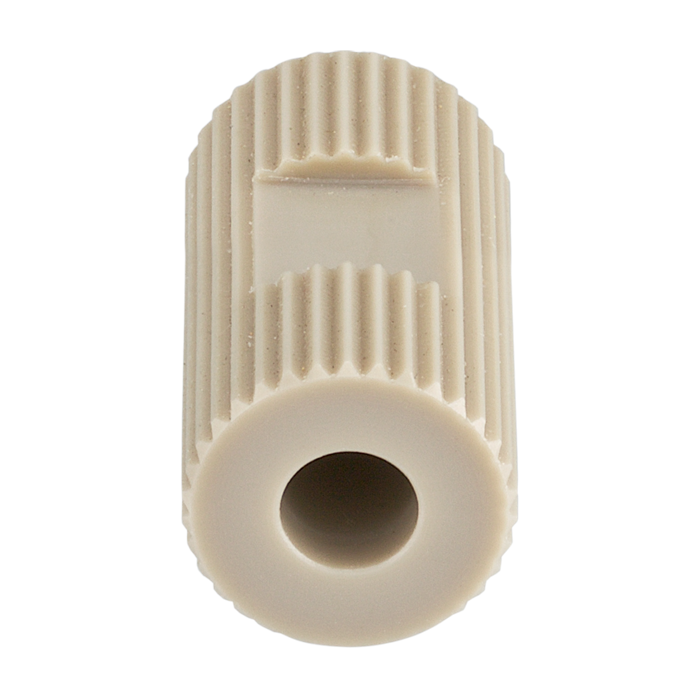

The "flat" section on the knurled adapter allows to use a wrench for an extra 1/8 of clockwise turn for tighter sealing or a slight counterclockwise turn to help remove if a tight fitting is too hard for hand removal. The flat section can also be used to hold the adapter in place with a wrench while the male nut is tightened in the adapter.
